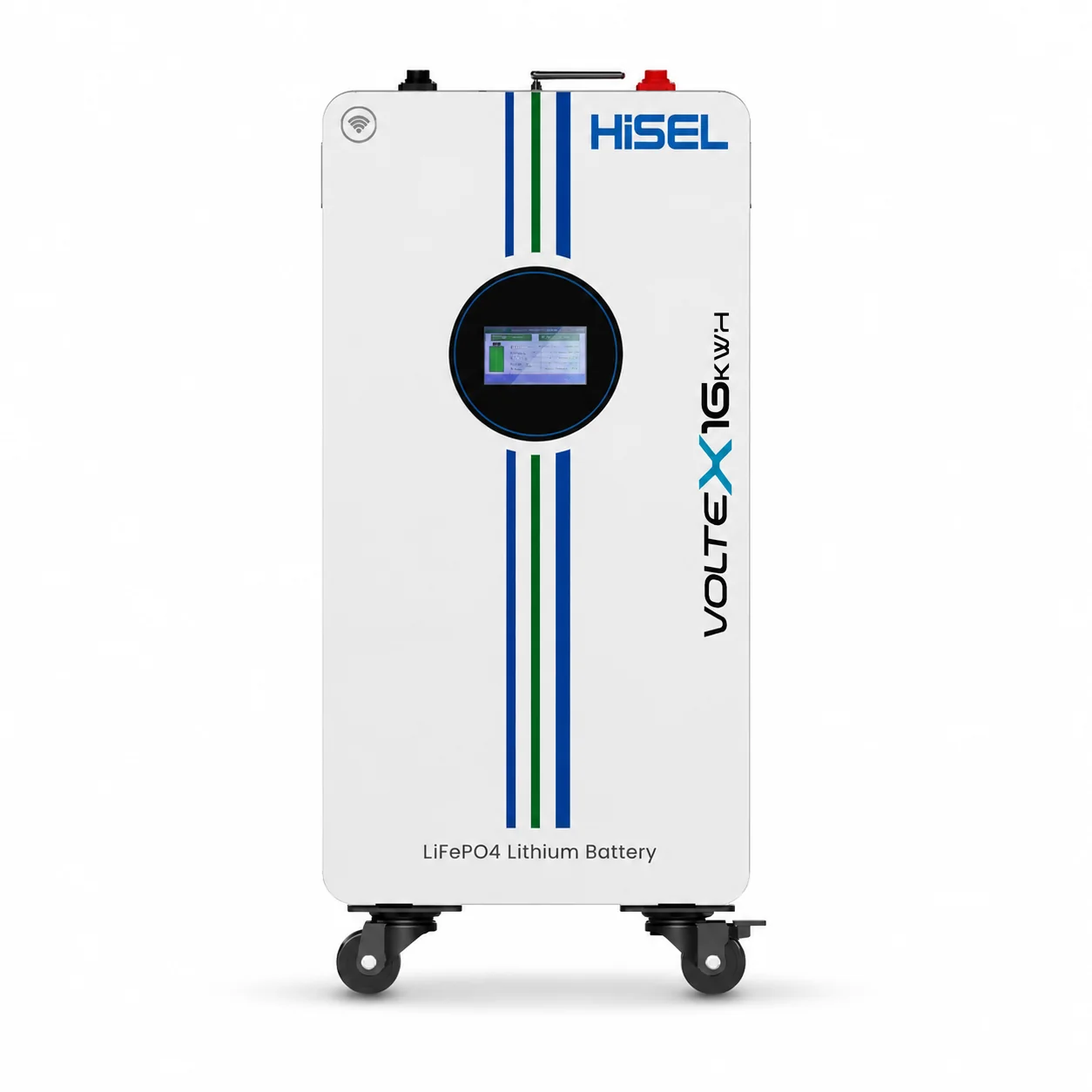

HiSEL Voltex 16.08kWh Floor-Standing LiFePO4 Battery – 51.2V 314Ah

HiSEL Voltex 16.08kWh Battery Price in Pakistan

The HiSEL Voltex 16.08kWh Battery is a high-capacity floor-standing LiFePO4 energy-storage solution for residential, commercial and off-grid solar systems in Pakistan. With a nominal voltage of 51.2V, a capacity of 314Ah and total energy storage of 16.08kWh, it is suitable for customers who require dependable backup power and efficient solar-energy storage.

This battery uses lithium iron phosphate technology, which provides improved thermal stability, safety and service life compared with conventional lead-acid batteries. Its floor-standing indoor design makes installation practical where wall mounting is unsuitable or where a larger-capacity energy-storage system is required.

51.2V 314Ah Energy Storage

The battery provides 16.08kWh of nominal energy through its 51.2V 314Ah configuration. This capacity can support household or business backup requirements, but actual backup time depends on connected load, inverter efficiency, battery settings, temperature and the selected depth of discharge.

Before purchasing, customers should calculate their essential load, required backup duration and solar-panel capacity. Heavy appliances and motors may require higher starting power, so inverter capacity must also be checked.

8000+ Cycle Life

The HiSEL Voltex battery is rated for 8000 or more cycles under the manufacturer’s specified operating conditions. Actual cycle life may vary according to charging current, discharge level, operating temperature, inverter configuration and everyday usage.

Its stated design life is up to 15 years. Design life is not the same as the product warranty and depends upon correct installation, suitable environmental conditions and proper system configuration.

Charging and Discharging Performance

The battery supports a recommended and maximum charging current of 150A. It also supports a recommended discharge current of up to 200A and a peak discharge current of 200A for up to three minutes, according to the listed product specifications.

The voltage range is 44.8V to 58.4V, with a specified charge voltage of 58.4V and float voltage of 57.6V. Final inverter settings must always be selected according to the battery manufacturer’s instructions and the compatible inverter protocol.

Smart Communication

CAN and RS485 communication allow the battery-management system to exchange important information with compatible hybrid inverters. This communication can help the inverter monitor battery voltage, charging status, operating condition and available capacity.

Compatibility should be confirmed before installation because communication cables, pin configurations and inverter battery protocols may differ between brands and models. Contact Sufi Electric Store Zafarwal before ordering if you need help checking inverter compatibility.

Indoor Floor-Standing Design

The battery measures approximately 740 × 395 × 250mm and has a net weight of approximately 112kg. It is designed for indoor floor-standing installation.

It should be installed on a stable surface in a dry and ventilated area, away from direct sunlight, rain, excessive moisture and heat sources. Due to its weight, safe handling and professional installation are strongly recommended.

Key Features

• 16.08kWh nominal energy capacity
• 51.2V 314Ah LiFePO4 configuration
• 8000+ rated battery cycles
• Up to 15-year design life
• 150A maximum charging current
• Up to 200A recommended discharge current
• 200A peak discharge for up to three minutes
• CAN and RS485 communication
• Floor-standing indoor installation
• Wide operating-temperature range
• Stable and safe LiFePO4 cell chemistry

Technical Specifications

• Brand: HiSEL
• Series: Voltex
• Battery chemistry: LiFePO4
• Nominal voltage: 51.2V
• Nominal capacity: 314Ah
• Nominal energy: 16.08kWh
• Voltage range: 44.8V–58.4V
• Charge voltage: 58.4V
• Float voltage: 57.6V
• Recommended charging current: 150A
• Maximum charging current: 150A
• Recommended discharge current: Up to 200A
• Peak discharge current: 200A for three minutes
• Communication: CAN and RS485
• Rated cycle life: 8000+ cycles
• Design life: Up to 15 years
• Dimensions: Approximately 740 × 395 × 250mm
• Net weight: Approximately 112kg
• Charging temperature: 0°C to 65°C
• Discharging temperature: -20°C to 65°C
• Installation: Indoor, floor standing

Order from Sufi Electric Store

Order the HiSEL Voltex 16.08kWh LiFePO4 Battery from Sufi Electric Store Zafarwal. Contact us before payment to confirm current price, stock availability, delivery charges and compatibility with your inverter.

Heavy and high-value batteries may require full or partial advance payment. Delivery arrangements and charges depend on product weight and the customer’s location. Professional installation and correct inverter configuration are recommended for safe, reliable performance.
